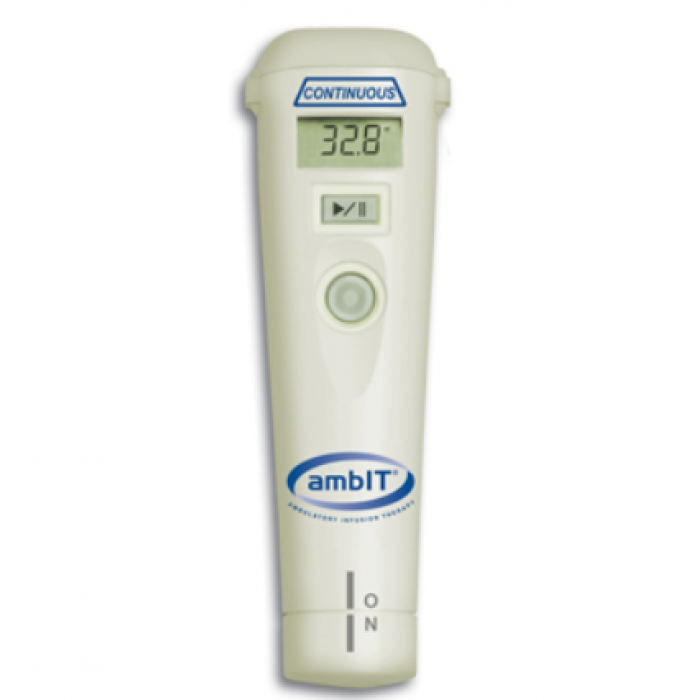

Ambit ambulatory infusion pump

Ambit Continuous Infusion Pump-Patient Manual Download Here: https://parasolmed-my.sharepoint.com/:b:/g/personal/dan_kilcran_medtecmedical_com/EaPpHYJ6mnVMrY1PZiHOWeIBNwwBBrWdFPtAYdk2o4xZQA?e=zkF4Kt

ambIT® Continuous can run at higher infusion rates without the option of a bolus – essential for applications in chemotherapy, antibiotic treatments, and hydration services.

Durable and Reusable:
ambIT® Continuous is designed to eliminate mechanical maintenance and calibration expenses.
Patients can easily carry the ambIT® Continuous while receiving accurate infusion therapy

Effective Safety Standards:
• Programming lockout
• Anti-free flow
• Program review
• Device internal self-check
• Latex-free and DEHP-free fluid path

Flexibility and Convenience:
• Small and lightweight design
• Easily concealed in custom-built carry pouch with view-window
• Titratable infusion rates
• Infusion history reports
• No maintenance

Only Pertinent Alarms:
• Downstream Occlusion Alarm
• Check Cassette Alarm
• Product Malfunction

Specifications:
• Volumetric Accuracy +/- 6%
• Flow Rates 0.1 to 125 ml/hr
• Stroke Volume 50 microliters
• Volumes to be Infused (ml) 25 to 999 ml in 1 ml increments
• Pump Mechanism Microprocessor Controlled
• Rotary-Peristaltic
• Dimensions: 2.16 in. x 1.4 in. x 6.875 in. (55 mm x 36 mm x 175 mm)
• Weight: 6.4 ounces (181.4 grams) With Batteries
• Delivery Profiles Continuous Rate
• Reports Volume Infused
• Time Elapsed
• Power Supply: Two AA Batteries
Alarms & Alerts:
• Detached Cassette
• Malfunction
• Run Indicator Light
• Occlusion Downstream
• Low Battery
• Dead Battery
• Infusion Complete
• Pause Indicator
The ambIT Continuous Pump follows internationally recognized volumetric accuracy standards (IEC 60601-2-24), unlike elastomeric and mechanical pumps. Federal (U.S.A.) law restricts this device to sale by or on the order of a physician.
